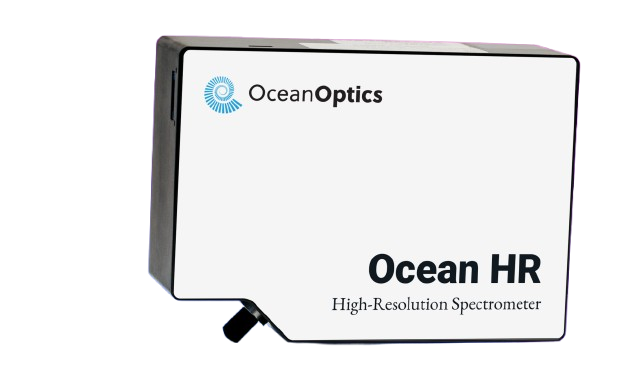

HR series spectrometers are small-footprint, high-resolution spectrometers that are well suited for applications such as wavelength characterization of lasers and LEDs, monitoring of gases and monochromatic light sources, and determination of elemental atomic emission lines. Depending on spectrometer configuration, optical resolution as fine as <0.1 nm (FWHM) is possible.
An enhanced-sensitivity (-ES) version is available with a detector collection lens that increases light collection efficiency in the optical bench.
HR series spectrometers are available with different detectors, in standard and extended-wavelength range options, and with enhanced sensitivity optics for applications like plasma monitoring and solar irradiance.
- High-resolution performance – configurable for optical resolution <0.1 nm (FWHM)
- Flexible triggering functions - synchronize the spectrometer to other devices
- High-speed acquisition - integration times to 1 ms for capturing fast spectral events
- +CG model - provides high resolution over a broad wavelength range (200-1100 nm)
- Electronic shutter - feature available in HR4000 model eliminates saturation
New HR4Pro preconfigured spectrometers are compact, high-resolution options distinguished by low stray light performance and great thermal stability for applications in lab, field, and process environments. With a robust optical bench design and optimized components, the HR4Pro provides up to 10x improvement in thermal stability compared with similar small-bench spectrometers. Models are available for UV-Vis (200-875 nm), Vis-NIR (350-1025 nm), and extended-range (200-1100 nm) measurements.
- High-resolution performance – setups configurable for optical resolution <0.1 nm (FWHM)
- New preconfigured options -HR4Pro model spectrometers offer up to 10x thermal stability improvement
- Affordable - large-bench optical resolution performance at small-bench pricing
- Convenient integration - compact setup can be integrated into your analytical device with no trade-off in performance
- Flexible triggering functions - synchronize the spectrometer to other devices
- High-speed acquisition - integration times to 1 ms for capturing fast spectral events
HR2000+CG
Specifications
Spectroscopy:
Integration Time: 1ms – 65s
Wavelength Range: 200nm – 1.05μm
Optical Resolution: 0.62 nm FWHM (typical)
Dynamic Range: 8.5 x 107 (system); 1300:1 for a single acquisition
Input Fiber Connector: SMA 905
Signal to Noise Ratio: >290:1 (full signal)
Stray light: <0.05% at 600 nm; <0.10% at 435 nm
Detector:
Grating: GRATING_#HC1
Pixels: 2048
Detector: Linear silicon CCD array
Entrance slit: 5 µm
Detector Collection Lens: No
Electronics
Connectors: 480 Mbps, 2-wire RS-232, I2C 2-wire serial bus, USB 2.0
Power Consumption: 220 mA at 5 VDC
Environmental:
Humidity: 0-90% non-condensing
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30° to 70° C
Physical:
Dimensions: 148.6 x 104.8 x 45.1 mm (5.9 x 4.1 x 1.8 in.)
Weight: 0.57 kg (1.26 lbs.)
HR2000+ES
Specifications
Spectroscopy:
Integration Time: 1ms – 65s
Wavelength Range: 190nm – 1.1μm
Optical Resolution: ~0.9 nm FWHM (typical)
Dynamic Range: 8.5 x 107 (system); 1300:1 for a single acquisition
Input Fiber Connector: SMA 905
Signal to Noise Ratio: >290:1 (full signal)
Stray light: <0.05% at 600 nm; <0.10% at 435 nm
Detector:
Grating: GRATING_#HC1
Pixels: 2048
Detector: Linear silicon CCD array
Entrance slit: 10 µm
Detector Collection Lens: Yes
Electronics
Connectors: 480 Mbps, 2-wire RS-232, I2C 2-wire serial bus, USB 2.0
Power Consumption: 220 mA at 5 VDC
Strobe Functions: 2 programmable strobe signals (single/continuous)
Environmental:
Humidity: 0-90% non-condensing
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30° to 70° C
Physical:
Dimensions: 148.6 x 104.8 x 45.1 mm (5.9 x 4.1 x 1.8 in.)
Weight: 0.57 kg (1.26 lbs.)
HR4000CG-UV-NIR
Specifications
Spectroscopy:
Integration Time: 4ms – 20s
Wavelength Range: 200nm – 1.1μm
Optical Resolution: 0.47 nm FWHM (typical)
Dynamic Range: 2 X 109 (system); 2000:1 for a single acquisition
Input Fiber Connector: SMA 905
Signal to Noise Ratio: >3000:1 (full signal)
Stray light: <0.05% at 600 nm; <0.10% at 435 nm
Detector:
Grating: GRATING_#HC1
Pixels: 3648
Detector: Linear silicon CCD array
Entrance slit: 5 µm
Detector Collection Lens: No
Electronics
A/D Resolution: 16 bit
Connectors: 480 Mbps, 2-wire RS-232, I2C 2-wire serial bus, USB 2.0
Power Consumption: 450 mA @ 5 VDC
Strobe Functions: 2 programmable strobe signals (single/continuous)
Environmental:
Humidity: 0-90% non-condensing
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30° to 70° C
Physical:
Dimensions: 148.6 x 104.8 x 45.1 mm (5.9 x 4.1 x 1.8 in.)
Weight: 0.57 kg (1.26 lbs.)
HR4PRO-UV-VIS-ES
Specifications
Spectroscopy:
Integration Time: 3.8ms – 10s
Wavelength Range: 200nm – 875nm
Optical Resolution: ~0.66nm FWHM
Corrected linearity: 0.5% NL
Dynamic Range: 2 X 109 (system); 2000:1 for a single acquisition
Input Fiber Connector: SMA 905
Signal to Noise Ratio: >3000:1 (full signal)
Thermal Stability: 0.03 pixels/°C
Detector:
Grating: GRATING_#H48
Pixels: 3648
Detector: Linear silicon CCD array
Entrance slit: 10 µm
Order Sorting: OTF4
Detector Collection Lens: Yes
Electronics
A/D Resolution: 14 bit
Power Requirement: 5VDC, 500ma
Communications:
Wired: USB 2.0
Environmental:
Compliance: RoHS, CE
Humidity: 0-90% non-condensing
Material: Aluminum
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30° to 70° C
Physical:
Dimensions: 148.6 x 104.8 x 45.1 mm (5.9 x 4.1 x 1.8 in.)
Weight: 570g
HR4PRO-VIS-NIR-ES
Specifications
Spectroscopy:
Integration Time: 3.8ms – 10s
Wavelength Range: 350nm – 1.025μm
Optical Resolution: ~0.66nm FWHM
Corrected linearity: 0.5% NL
Dark Noise: 6 counts RMS
Dynamic Range: 2500
Input Fiber Connector: SMA 905
Signal to Noise Ratio: >3000:1 (full signal)
Thermal Stability: 0.05 pixels/°C
Detector:
Grating: GRATING_#H48
Pixels: 3648
Detector: Linear silicon CCD array
Entrance slit: 10 µm
Order Sorting: OTF4
Detector Collection Lens: Yes
Electronics
A/D Resolution: 14 bit
Power Requirement: 5VDC, 500ma
Communications:
Wired: USB 2.0
Environmental:
Compliance: RoHS, CE
Humidity: 0-90% non-condensing
Material: Aluminum
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30° to 70° C
Physical:
Dimensions: 148.6 x 104.8 x 45.1 mm (5.9 x 4.1 x 1.8 in.)
Weight: 570g
HR4PRO-XR-ES
Specifications
Spectroscopy:
Integration Time: 3.8ms – 10s
Wavelength Range: 200nm – 1.1μm
Optical Resolution: ~0.9nm FWHM
Corrected linearity: 0.5% NL
Dynamic Range: 2500
Input Fiber Connector: SMA 905
Signal to Noise Ratio: >3000:1 (full signal)
Thermal Stability: 0.06 pixels/°C
Detector:
Grating: GRATING_#H13
Pixels: 3648
Detector: Linear silicon CCD array
Entrance slit: 10 µm
Order Sorting: OTF5
Detector Collection Lens: Yes
Electronics
A/D Resolution: 14 bit
Power Requirement: 5VDC, 500ma
Communications:
Wired:
USB 2.0
Environmental:
Compliance: RoHS, CE
Humidity: 0-90% non-condensing
Material: Aluminum
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -30° to 70° C
Physical:
Dimensions: 148.6 x 104.8 x 45.1 mm (5.9 x 4.1 x 1.8 in.)
Weight: 570g
